Input Voltage Range: 9.0—50.0VDC
Maximum Input Current Limit: <65A
Maximum Charge/Discharge Current: 70A@in sync mode / 40A in async mode
Maximum Charge Power Capacity: 2000W (Channel 1400W @input > 23.5V)
Maximum Discharge Power Capacity: 200W (Channel 130W)
Maximum Regenerative Discharge Power Capacity: 2000W (Channel 1400W)
Maximum Extra Discharge Power Capacity: 3200W (Channel 1600W @40V/40A)
Maximum Current Drain for Balancing: 2.4A in sync mode, 1.2A in async mode
Net Weight: 1.47kg
Dimension: 210.0×140.1×80.2mm ±0.5mm

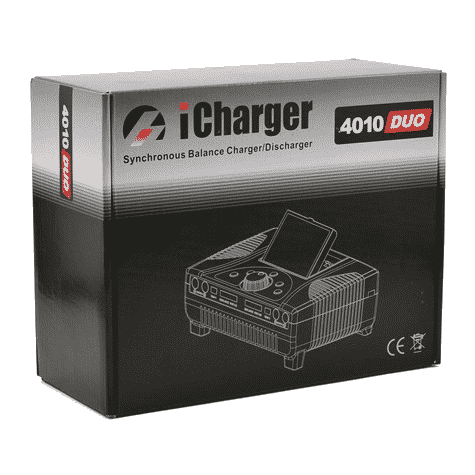

Charger Junsi iCharger 4010DUO
Lilo/LiPo/Life/NiMH/NiCD DC Battery Charger (10S/40A/2000W)
2 Versions available
- Junsi iCharger 4010DUO
- Charger with Power Supply 750W (Charger Stand offered)
Free shipping in USA.
Internal temperature protection keeps the charger operating safely and efficiently. When the internal temperature exceeds the threshold, the output power is automatically reduced and the charger will shut down when the temperature exceeds the cut-temperature. The intelligent fan control senses the internal temperature and uses an internal temperature sensor to control the fan speed. The 4010DUO has protection for reversed polarity (input or output), input voltage/current, battery temperature, charging capacity, time overrun, maximum power and more, while the multi-discharge features include discharge-self, regenerative to input discharge, regenerative to channel discharge, and lithium battery extra expanding discharge. The hardware programming can be updated through the USB port. The 4010DUO also supports “Logview” software to display, plot and analyze the charge and discharge data.
1400W of charging power per channel, 2000W when both channels are combined
Maximum charge current of up to 40A in Asyn. Mode, 70A in Sync Mode
Maximum discharge current of 130W per channel, 200W when both channels are combined
Each channel supports 10S lithium batteries
TFT LCD screen displays current, voltage, power, capacity, internal resistance, control status, time-consuming, temperature and more
64 parameter sets can be saved
Measures internal resistance of the battery pack, and also the per-cell internal resistance
1.2A balance current, and uses a unique “internal resistance correction” balance calculation
Internal temperature protection
Intelligent fan control
Multi-discharge features: discharge-self, regenerative to input discharge, regenerative to channel discharge, and lithium battery extra expanding discharge.
Supports upgrading the hardware program by USB port
Supports “Logview” software to display, plot and analyze charge and discharge data
To download the product manual click here.
Warranty Information: Please note for this particular unit, RC Upgrade does not handle the warranty service and will need to ship the unit to Junsi for repair or replacement. For this reason, we ask that you please allow 3-4 weeks for warranty service.
